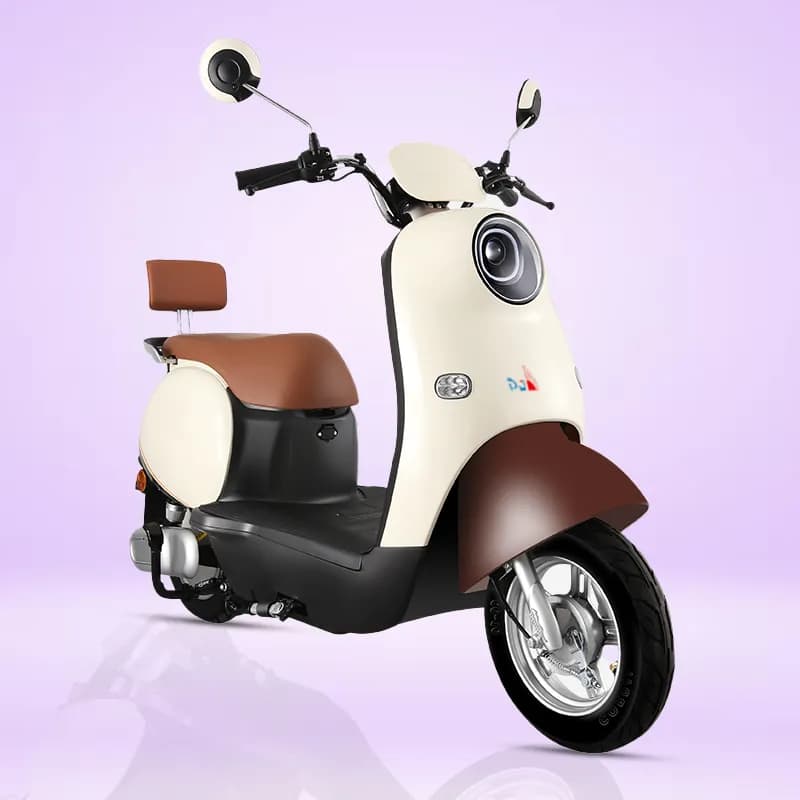

G6 Series

Main technical parameters and performance indicators of the vehicle

Overall dimensions: length × width × height: 1720*720*1070 mm

Pedal size: length x width: 390*365 mm

Front and rear wheel center distance: 1290 mm

Maximum speed: 65 km/h

Continuation mileage: 80 km

Acceleration performance (100m): 17 s

Braking distance: 6.5 m

Climbing grade: 8-15°

Driving current: 11 A

Minimum ground clearance: 120 mm

Steering angle (left or right): Left 43° Right 44°

Braking operation mode (front/rear): Handbrake

Brake type (front/rear): Front disc rear hub

Tire specifications (front/back): 3.0-10 Tubeless

Main technical parameters of batteries

Battery Type: Lead Electricity

Rated capacity: 20 Ah

Nominal voltage: 72V

Main technical parameters of the motor

Motor type: 10 inch electric scooter

Motor rated power: 1200W

No-load speed: 550 r/min

Rated voltage: 72V

Output maximum torque: 85 Nm

Main technical parameters of the controller

Undervoltage protection value: 63V

Overcurrent protection value: 28A

Main technical parameters of charger

Maximum charging voltage:89V

Charging Current: 3A

Basic Configuration

B/D/20AH/215 hub brake motor 30G-S/12-tube wireless controller/Blackberry instrument ☆ φ27 straight disc/front disc brake alloy wheel/3.0-10 tubeless tire/Micool rear reduction/aluminum hanger with rear backrest/front disc and rear hub

Main selling points

1. Blackberry instrument 2. Aluminum hanger with backrest 3. Deep seat bucket 4. Front disc and rear hub 5. LED lights

Vehicle packaging size: 1700*460*840 mm

Gross weight of vehicle (including iron frame carton packaging): 113 kg

Vehicle quality: 96 kg

Empty weight: 55 kg

Battery: 72V20AH

charger: AC220V Bengal plug, DC 72V 3.0A English label, without Chinese characters
