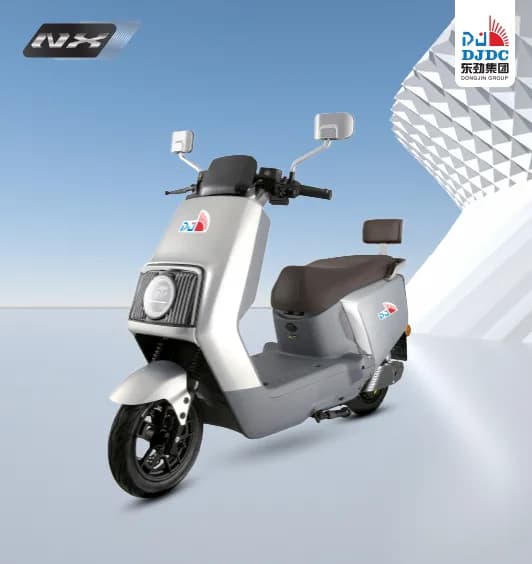

NX Series

Main technical parameters and performance indicators of the vehicle

Overall dimensions: length × width × height: 1750×700×1130 mm

Front and rear wheel center distance: 1200 mm

Maximum speed: 65 km/h

Continuation mileage: ≥80 km

Acceleration performance (100m): 17 s

Braking distance: 6.5

Gradeability: 8-15°

Driving current: 11 A

Minimum ground clearance: 140 mm

Steering angle (left or right): Left 43° Right 44°

Braking operation mode (front/rear): Front and rear handbrakes

Brake type (front/rear): Front disc brake, rear disc brake

Tire specifications (front/back): 3.0-10 Tubeless

Main technical parameters of batteries

Battery Type: Lead Acid

Rated capacity: 20Ah/32Ah Optional Ah

Nominal voltage: 60V

Main technical parameters of the motor

Motor type: 10 inch electric scooter

Motor rated power: 1200W

No-load speed: 550±10r/min

Rated voltage: 60V

Output maximum torque: 80Nm

Main technical parameters of the controller

Undervoltage protection value: 52.5±0.5V

Overcurrent protection value: 32A

Main technical parameters of charger

Maximum charging voltage:74V

Charging Current: 3A

Basic Configuration

Battery BVDV20/32Ah, motor 215 type 30G, 12-tube AT controller, NFC card swiping BlackBerry instrument, 30-tube straight disc, thick rear reduction, anti-brake aluminum wheel, Front disc and rear disc brake, Wanda unmarked 3.00-10, aluminum hanger with backrest, LED gene headlight, USB charging port, one-key repair, airplane handle, three gears, AT

Main selling points

Front reverse disc and rear disc brakes, NFC card swiping BlackBerry instrument, Wanda 3.0-10, LED headlights, AT power

Vehicle packaging size: 1750*570*850 mm

Gross weight of vehicle (including iron frame carton packaging): 126 kg

Vehicle quality: 124 kg

Empty weight: 66 kg

Battery: 72V20AH

charger: AC220V Bengal plug, DC 72V 3.0A English label, without Chinese characters
